Shovel Head: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Shovel Head"


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

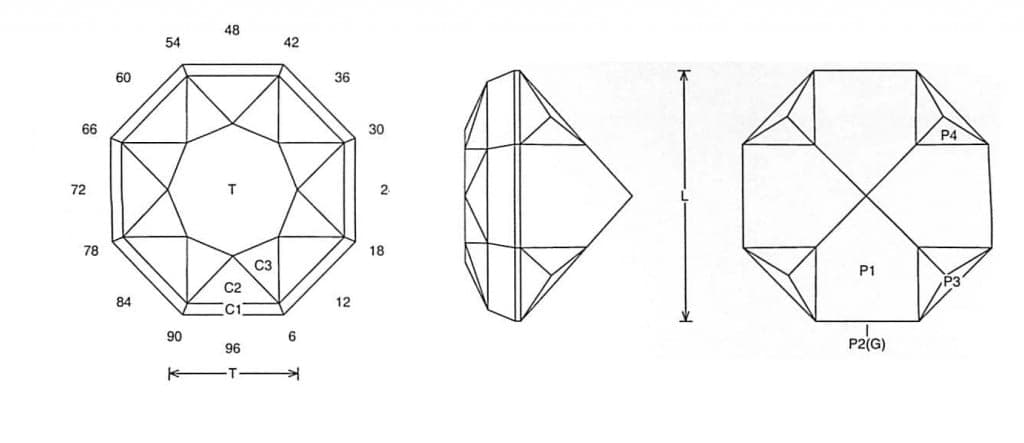

Shovel Head Jeff Graham Facet Design

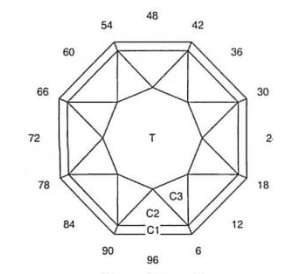

Shovel Head Jeff Graham Facet Design

Shovel Head (SUN1.JRG)
By Jeff R. Graham
Copyright 2006

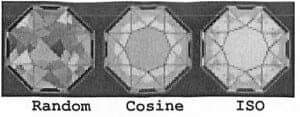

85.9% Light Return
Angles for R.I. = 1.54
41 facets + 8 facets on girdle = 49
8-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.530 T/L = 0.530 P/W = 0.466
C/W = 0.204 H/W = (P+C)/W+0.02 = 0.690 P/H = 0.676 C/H = 0.295 Vol./W^3 = 0.286



Addition # 11 - This is a deep cut to help give life to dull colored Sunstone. Cut in refractive indexes 1.54 to 2.14 with no changes. The pavilion is designed not to mix color and this works well for watermelon bulls eye material. Note: You can cut the girdle and the pavilion at the P3 angle to meet then cut them down at P1. C2 can vary depending on saturation and stone depth.

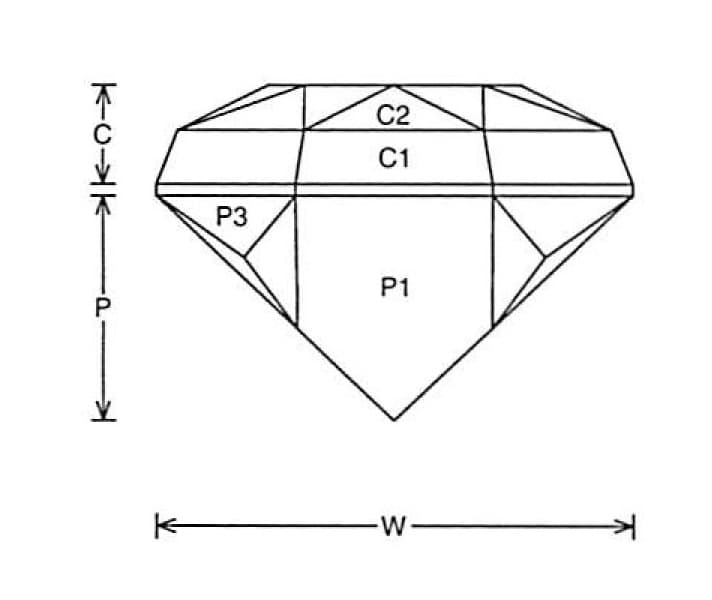

Shovel Head Jeff Graham Facet Design


Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
