Step'in Boxes: Faceting Design Diagram


Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Step'in Boxes"

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Stepin boxes Jeff Graham Facet Design

Jeff Graham Facet Design

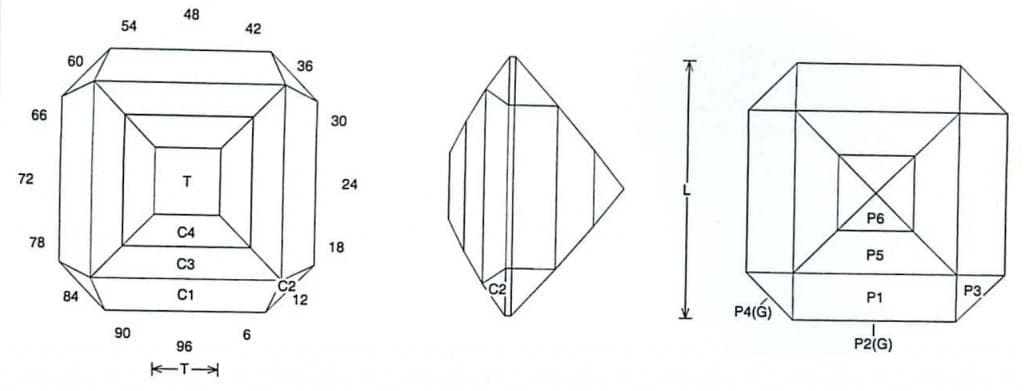

Step'in Boxes (MIR84.JRG)
By Jeff R. Graham
Copyright 2005

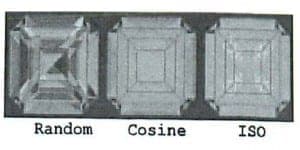

86.6% Light Return
Angles for R.I. = 1.62
33 facets + 8 facets on girdle = 41
4-fold, mirror-image symmetry
96 index

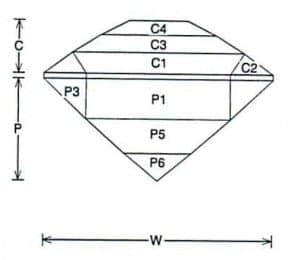

L/W = 1.000 T/W = 0.257 T/L = 0.257 P/W = 0.438
C/W = 0.229 H/W = (P+C)/W+0.02 = 0.687 P/H = 0.637 C/H = 0.334 Vol./W^3 = 0.278

PAVILION

CROWN

Addition # 10 - Cut in refractive indexes 1.62 to 1.76 with no changes. This is a good Garnet cut and also works well in about any light to medium saturated stone. Note: P3 floats and can vary to fit rough. I usually cut them to look like the diagram.

Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
