Using a Reticle

reticle - 20x magnification

Types of Reticles

There are two types of reticles: contact and non-contact.

  • Microscope eye pieces incorporate non-contact reticles. They have the singular advantage of being always in focus and the disadvantage of being the most expensive.
  • The viewer places contact reticles directly on the object being measured. These cost considerably less than the non-contact type and are available individually or in sets.

Since your needs will vary, a combination of reticles is best.

Contact reticles come unattached. You can use them with any loupe or microscope. Others attach to a special hand loupe. These are almost useless for measuring things like the pavilion angle, where the part being measured is not directly in contact with the scale.

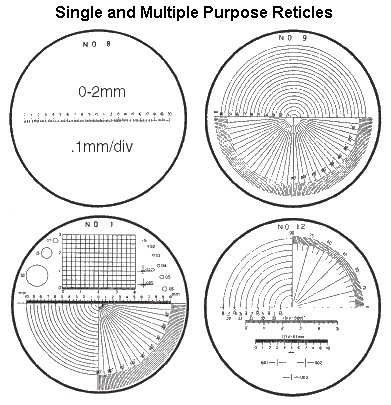

single and multiple purpose reticles

General Techniques

The following instructions are for using a contact reticle with a microscope. Using them with a loupe is nearly identical. The techniques are easily adapted.

As with any precision instrument, there are tricks to using them correctly. Most importantly, look straight down on the measurement. Looking at it from an angle will give you an inaccurate reading. Also, pay attention to which eye you’re using. If you switch eyes, you’ll change…
