Channel Pattern: Faceting Design Diagram

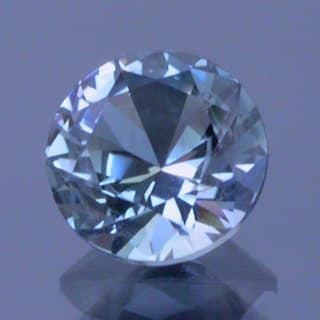

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Channel Pattern".


Topaz (Swiss, Electric, London Blue, Imperial, White, Yellow, Pink, Champange)

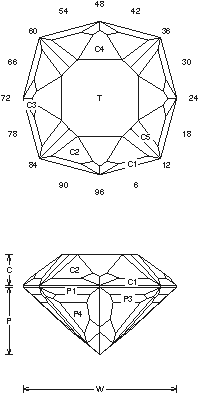

Channel Pattern (TOPAZ19.JRG)
By Jeff R. Graham
Copyright 1998
79% Light Return
Angles for R.I. = 1.62
101 facets + 8 facets on girdle = 109
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.497 T/L = 0.497
P/W = 0.440 C/W = 0.199
H/W = (P+C)/W+0.02 = 0.659
P/H = 0.668 C/H = 0.302
Vol./W^3 = 0.238

Addition # 3 - This can be a little tricky to cut, the steps take a lot of lining up. I would cut this in a larger size, it works well in about any material. Also this is a good cut for "c" axis Tourmaline, 1-18cts. Cut in refractive indexes 1.62 to 1.93 with no changes.

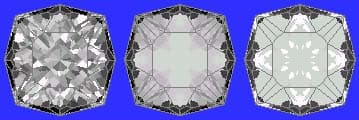

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
