Chick: Faceting Design Diagram


Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Chick".

0

Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

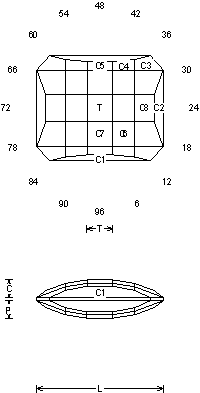

Chick (CHECK46.JRG)
By Jeff R. Graham
Copyright 2002
Angles for R.I. = 1.73
58 facets + 8 facets on girdle = 66
2-fold, mirror-image symmetry
96 index
L/W = 1.328 T/W = 0.256
T/L = 0.193 P/W = 0.167 C/W = 0.170
H/W = (P+C)/W+0.02 = 0.357 P/H = 0.469
C/H = 0.475
Vol./W^3 = 0.298

Addition # 8 - This is designed for darker colored materials like Garnet. It will help give life to dark materials, but it will also work well in medium colored stones of any refractive index. This is designed to be bezel set so that the light and color will show from both sides. L/W is not critical and can vary some what. This cuts fast and is not hard to do...

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
