Corner Office: Faceting Design Diagram

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Corner Office"


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

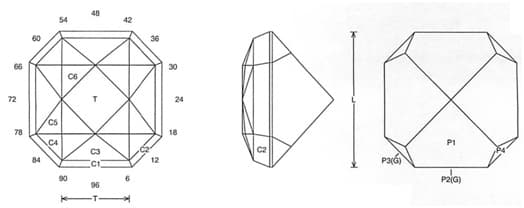

Corner Office Jeff Graham Facet Design

Corner Office Jeff Graham Facet Design

Corner Office (SUN14.JRG)
By Jeff R. Graham
Copyright 2006
87.8% Light Return
Angles for R.I. = 1.54
37 facets + 8 facets on girdle = 45
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.506 T/L = 0.506 P/W = 0.466
C/W = 0.207 H/W = (P+C)/W+0.02 = 0.693 P/H = 0.673 C/H = 0.298 Vol./W^3 = 0.307



Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. The crown step can be adjusted. Note: The corners are floating, cut them as close to the diagram as you can. This is good for watermelon and single color material. The steps on the crown can vary to match rough, but deeper stones work best.

Corner Office Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
