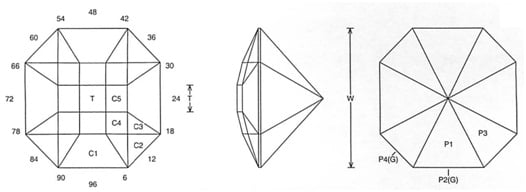

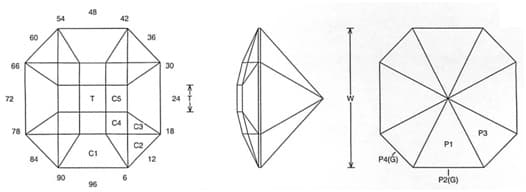

Ephemeral: Faceting Design Diagram

Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

Ephemeral (SUN11.JRG)
By Jeff R. Graham
Copyright 2006
94.2% Light Return
Angles for R.I. = 1.54
33 facets + 8 facets on girdle = 41
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.193 T/L = 0.193 P/W = 0.466
C/W = 0.158 H/W = (P+C)/W+0.02 = 0.645 P/H = 0.723 C/H = 0.246 Vol./W^3 = 0.218

PAVILION

CROWN

Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is designed for thin good-colored rough and/or shiller. This is very bright and, if cutting in heavy shiller, be sure the flash is 90 degrees to crown. This is also excellent in saturated Garnets.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
