CZ “X”: Faceting Design Diagram

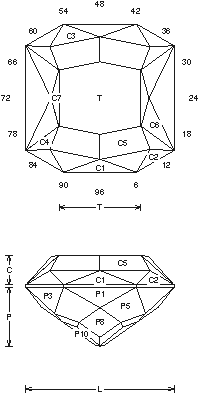

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "CZ "X" ".
Cubic Zirconia
CZ "X" (CZ13.JRG)
By Jeff R. Graham
Copyright 1997
77% Light Return
Angles for R.I. = 2.20
59 facets + 8 facets on girdle = 67
2-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.551 T/L = 0.551
P/W = 0.399 C/W = 0.201
H/W = (P+C)/W+0.02 = 0.620
P/H = 0.644 C/H = 0.324
Vol./W^3 = 0.283
Addition # 2 - The light return is better than it shows, there are a lot of trapped rays. It is a little tricky to cut at the P8,P10. Cut in any CZ, 2- 12cts.

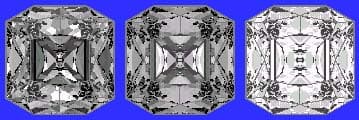

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
