Glow: Faceting Design Diagram

Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Glow".


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

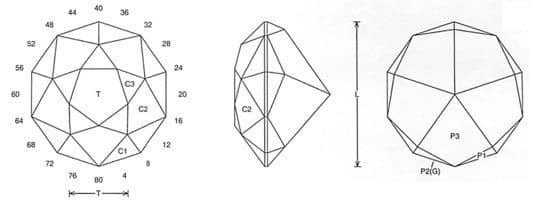

Glow Jeff Graham Facet Design

Glow Jeff Graham Facet Design

Glow (SUN23.JRG)
By Jeff R. Graham
Copyright 2006
89.4% Light Return
Angles for R.I. = 1.54
36 facets + 10 facets on girdle = 46
5-fold, mirror-image symmetry
80 index
L /W = 1.051 T/W = 0.434 T/L = 0.412 P/W = 0.473
C/W = 0.222 H/W = (P+C)/W+0.02 = 0.715 P/H = 0.662 C/H = 0.310 Vol./W^3 = 0.275



Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is designed for moderately saturated watermelon rough. Notice the large reflector mains. This also works well in about any rough. Note: The girdle can be cut in first and the P1 cut to meet so that center point is not needed and it saves rough.

Glow Jeff Graham Facet Design


Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
