Handy Cushion: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Handy Cushion".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

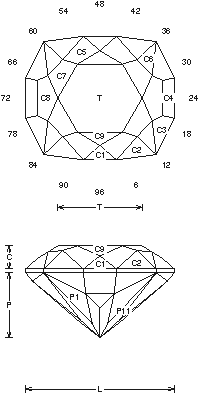

Handy Cushion (B26.JRG) 5.46 carat Nigerian pink Tourmaline
By Jeff R. Graham
Copyright 2001
87.1% Light Return
Angles for R.I. = 1.62
65 facets + 12 facets on girdle = 77
2-fold, mirror-image symmetry
96 index
L/W = 1.200 T/W = 0.682 T/L = 0.568
P/W = 0.525 C/W = 0.186
H/W = (P+C)/W+0.02 = 0.731
P/H = 0.718 C/H = 0.254
Vol./W^3 = 0.374

Addition # 5 - I cut a lot of cushions, and there seems to be a lack of high quality fast ones that are fast to cut. The breaks can be cut in another order, also notice the C8 does not have a meet at the girdle. This is to absorb a little if your L/W is off. This can be cut in R.I 1.62 to 1.93 (89.3%) with no changes.

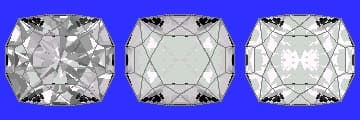

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
