Hedonist: Faceting Design Diagram


Successful tips, details, and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Hedonist"

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

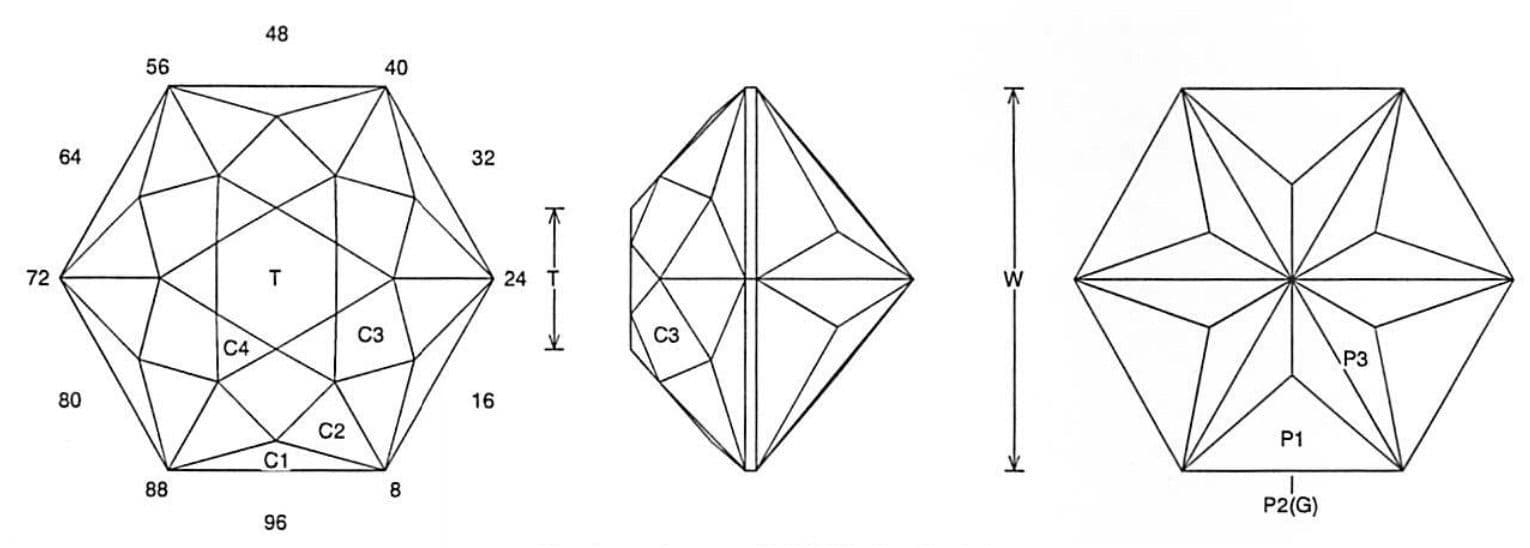

Hedonist Jeff Graham Facet Design 1

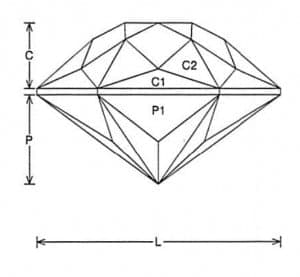

Hedonist Jeff Graham Facet Design 2



Hedonist (DOME6.JRG)Tourmaline
By Jeff R. Graham
Copyright 2007
70.6% Light Return
Angles for R.I. = 1.62
49 facets + 6 facets on girdle = 55
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.368 T/L = 0.319 P/W = 0.419
C/W = 0.305 H/W = (P+C)/W+0.02 = 0.744 P/H = 0.563 C/H = 0.410 Vol./W^3 = 0.285

PAVILION

CROWN

Addition # 13 - This is designed for light colored material like pale pink. It is easy to cut and has a nice flash pattern. Cut in refractive indexes 1.62 to 2.14 with no changes.

Hedonist Jeff Graham Facet Design 3

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
