Long Horn: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Long Horn".


Zircon (Hyacinth, Starlite)

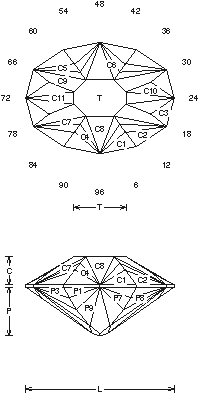

Long Horn (ZIRCON16.JRG)
By Jeff R. Graham
Copyright 1998
77% Light Return
Angles for R.I. = 1.98
85 facets + 12 facets on girdle = 97
2-fold, mirror-image symmetry
96 index
L/W = 1.330 T/W = 0.469 T/L = 0.352
P/W = 0.437 C/W = 0.252
H/W = (P+C)/W+0.02 = 0.710
P/H = 0.616 C/H = 0.355
Vol./W^3 = 0.316

Addition # 3 -This is hard to cut and should be in a larger size, it works well in CZ also. It should be cut in a large size because of the number of facets and meets. Light to medium color material,2-24cts.

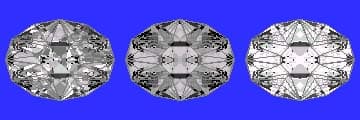

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
