Long Shore Man: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Long Shore Man".

0

Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

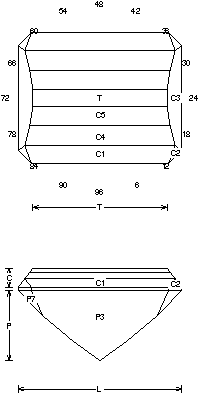

Long Shore Man (MC60.JRG) Garnet cut by Tony Carson
By Jeff R. Graham
Copyright 2001

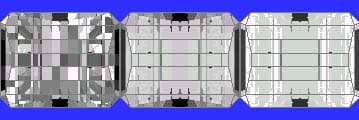

85.6% Light Return
Angles for R.I. = 1.73
25 facets + 8 facets on girdle = 33
2-fold, mirror-image symmetry
96 index
L/W = 1.250 T/W = 1.027 T/L = 0.822
P/W = 0.537 C/W = 0.145
H/W = (P+C)/W+0.02 = 0.702
P/H = 0.765 C/H = 0.207
Vol./W^3 = 0.446

Addition # 7 - The L/W can vary on this with no problems. The corners are determined by the P4, P5 meet. If the stone is large the P3 can be tough to polish. I designed this for a ring with the bars on the crown running along the length of the finger. It will work well in man-made Sapphire and CZ.
