Merger: Faceting Design Diagram

Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Merger".


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

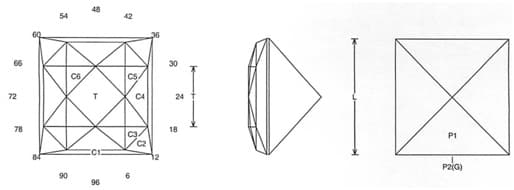

Merger Jeff Graham Facet Design

Merger Jeff Graham Facet Design

Merger (SUN12.JRG)
By Jeff R. Graham
Copyright 2006
93.5% Light Return
Angles for R.I. = 1.54
33 facets + 4 facets on girdle = 37
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.519 T/L = 0.519 P/W = 0.466
C/W = 0.162 H/W = (P+C)/W+0.02 = 0.649 P/H = 0.719 C/H = 0.250 Vol./W^3 = 0.293




Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is not hard to cut and finishes a very bright stone. The Crown step can be adjusted to fit your rough, deeper is better. This works well in Garnets too.
