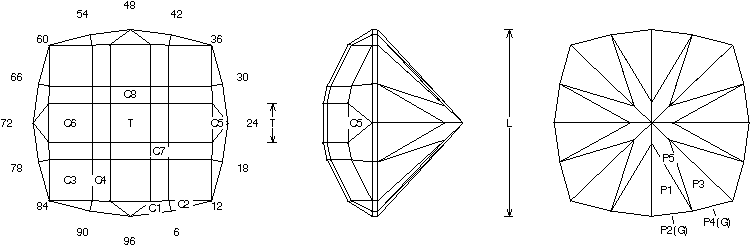

4 Way Stop by Jeff R. Graham
4 Way Stop - Cutting Remarks
This is a fun one to cut, but it is a little harder than it looks. The straight meets on the crown can be tough to get lined up. This is a good design to cut a large stone in, with the small facets on the crown it pretty much needs to be large. A medium to light saturated material is best and this will work well in, Quartz, Topaz, man-made Sapphire, Spinel, YAG, and CZ with no changes.
Enjoy cutting your "4 Way Stop"… Drop me an email to let me know your results and what you've cut, or feel free to inquire if you have any questions or need some help regarding this design.

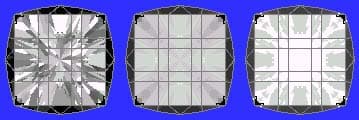

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
