Pent Mod “R”: Faceting Design Diagram
Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Pent Mod "R" ".
Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

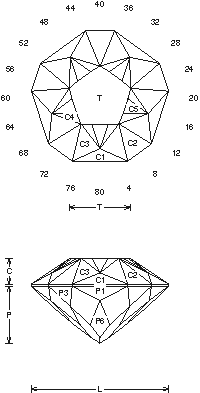

Pent Mod "R" (GNETP37.JRG)
By Jeff R. Graham
87.1% Light Return
Angles for R.I. = 1.73
66 facets + 10 facets on girdle = 76
5-fold, mirror-image symmetry
L/W = 1.051 T/W = 0.468 T/L = 0.445
P/W = 0.436 C/W = 0.197
H/W = (P+C)/W+0.02 = 0.653
P/H = 0.668 C/H = 0.301
Vol./W^3 = 0.235
Addition # 2 - This design cuts easy, but watch how you cut the P6, P7. They alternate and both meet the P3 tier. This has a very nice flash, just about any Garnet will work, I prefer light colors. I like it in Rose Malaya Garnet, 1-6cts. Cut in refractive indexes 1.73 to 2.14 with no changes.
