Rhodolite Rose: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Rhodolite Rose".


Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

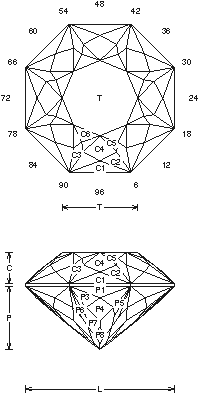

Rhodolite Rose (GNETR1.JRG)
By Jeff R. Graham
Copyright 1993
85.8% Light Return
Angles for R.I. = 1.73
153 facets + 8 facets on girdle = 161
8-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.508 T/L = 0.508
P/W = 0.425 C/W = 0.210
H/W = (P+C)/W+0.02 = 0.655
P/H = 0.649 C/H = 0.320
Vol./W^3 = 0.248

Gram Book 1 - It is all cut to center point and cuts easy. A larger size stone is better but it can be cut small. This works well in man-made Sapphire and CZ if you want to cut it large, but cannot find, or can afford, a large piece of natural rough. Cut in refractive index 1.73 to 2.14 (88.7%) with no changes.

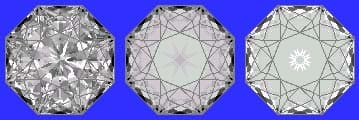

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
