Scanner: Faceting Design Diagram

Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Scanner"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Jeff Graham Facet Design

 Jeff Graham Facet Design

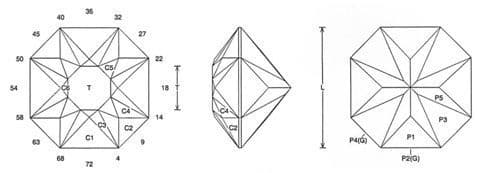

Scanner (MIR58.JRG)
By Jeff R. Graham
Copyright 2005

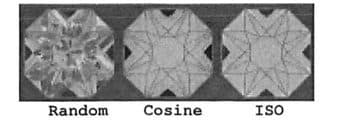

87.8% Light Return
Angles for R.I. = 1.62
49 facets + 8 facets on girdle = 57
4-fold, mirror-image symmetry
72 index
L/W = 1.000 T/W = 0.363 T/L = 0.363 P/W = 0.421
C/W = 0.221 H/W = (P+C)/W+0.02 = 0.662 P/H = 0.636 C/H = 0.334 Vol./W^3 = 0.246



Addition # 10 - This cuts a little harder than it may look, especially if the stone is small. The C3,C4 tiers are delicate. This works well in light to medium saturated materials. Cut in refractive indexes 1.62 to 2.14 with no changes.
