Temple Glass Triangle: Faceting Design Diagram


Details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Temple Glass Triangle".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

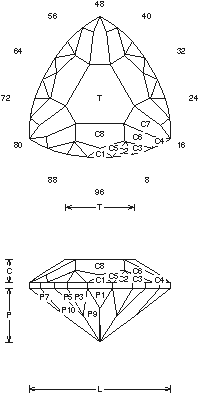

Temple Glass Triangle (TLINE6.JRG)
By Jeff R. Graham
Copyright 1993
80.3% Light Return
Angles for R.I. = 1.62
73 facets + 27 facets on girdle = 100
3-fold, mirror-image symmetry
96 index
L/W = 1.005 T/W = 0.488 T/L = 0.486
P/W = 0.382 C/W = 0.169
H/W = (P+C)/W+0.02 = 0.571
P/H = 0.669 C/H = 0.295
Vol./W^3 = 0.189

Addition # 1 - Here is something different! The pavilion facets P10 go through the girdle which is something unusual. It was a look I tried to get for this stone, it is not easy to cut. Cut in refractive indexes 1.62 to 1.93 (80%) with no changes. Light to medium-dark material and works well in Topaz, 1-18cts.

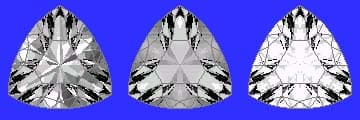

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
