Topaz Crystal II: Faceting Design Diagram

Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Topaz Crystall II"


Topaz (Swiss, Electric, London Blue, Imperial, White, Yellow, Pink, Champange)

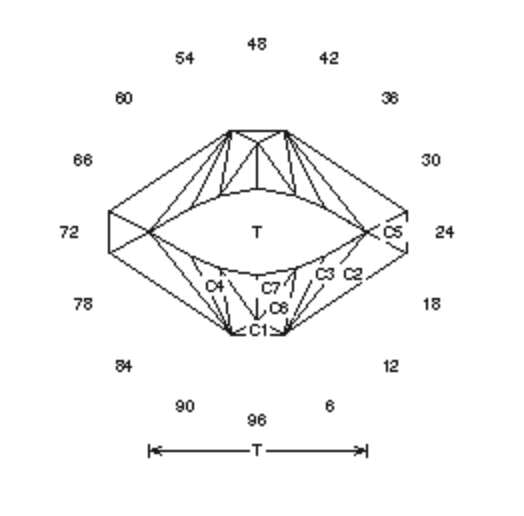

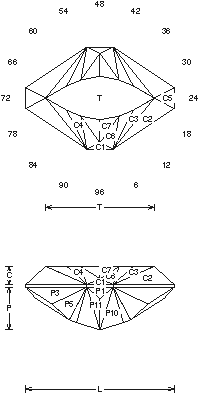

Topaz Crystal II (TOPAZ2.JRG)
By Jeff R. Graham
Copyright 1993
74% Light Return
Angles for R.I. = 1.62
53 facets + 8 facets on girdle = 61
2-fold, mirror-image symmetry
96 index
L/W = 1.450 T/W = 1.061 T/L = 0.732
P/W = 0.419 C/W = 0.178
H/W = (P+C)/W+0.02 = 0.616
P/H = 0.680 C/H = 0.288
Vol./W^3 = 0.290

Gram Book 1 - Another design for topaz crystal shapes, Champagne or pinkish (Mexican). No point for cleavage breaks, and close to natural shape for low waste. This design makes a nice cut with good return, 1-6cts. (not easy to do!)

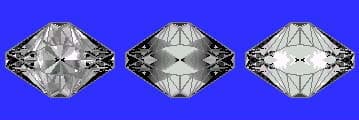

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
