Trap Swirl: Faceting Design Diagram

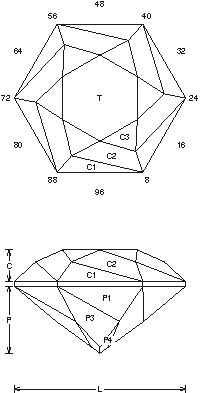

Details, helpful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Trap Swirl"
0Cubic Zirconia
Trap Swirl (CZ8.JRG)
By Jeff R. Graham
Copyright 1993
75% Light Return
Angles for R.I. = 2.20
37 facets + 6 facets on girdle = 43
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.581 T/L = 0.503
P/W = 0.452 C/W = 0.213
H/W = (P+C)/W+0.02 = 0.684
P/H = 0.660 C/H = 0.311
Vol./W^3 = 0.286
Gram Book 1 - Do not let the low reflected light return fool you! This is a great cut, almost all of the light entering this design is trapped and it has extra high dispersion. Light to med material, 1/2-4cts. Cut in refractive index 1.76 (76.9%)to 2.14 with no changes.

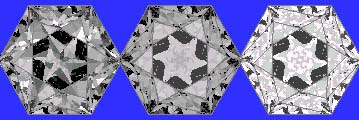

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
