Peridot (Olivine, Green, apple green to yellow green)

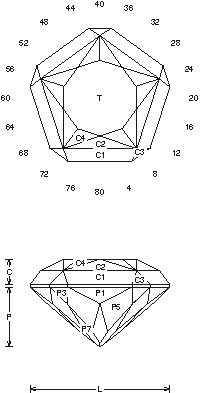

BP Star (PDOT6.JRG)
By Jeff R. Graham
83.6% Light Return
Angles for R.I. = 1.67
56 facets + 10 facets on girdle = 66
5-fold, mirror-image symmetry
L/W = 1.051 T/W = 0.570 T/L = 0.542
P/W = 0.449 C/W = 0.190
H/W = (P+C)/W+0.02 = 0.659
P/H = 0.681 C/H = 0.289
Vol./W^3 = 0.248
Addition # 3 - The C3 facets can be cut before the C2's if you want to, otherwise this design cuts normally and you should not have any problems. It makes a very nice stone in any material, 1-8cts. Cut in refractive indexes 1.67 to 2.14 with no changes.

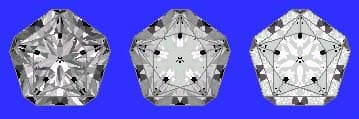

Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
