Winter Ice: Faceting Design Diagram

Helpful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Winter Ice"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

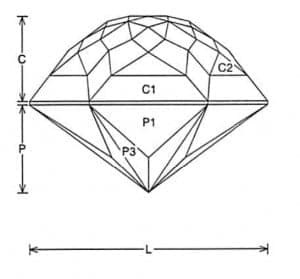

Winter Ice Graham Facet Design 1

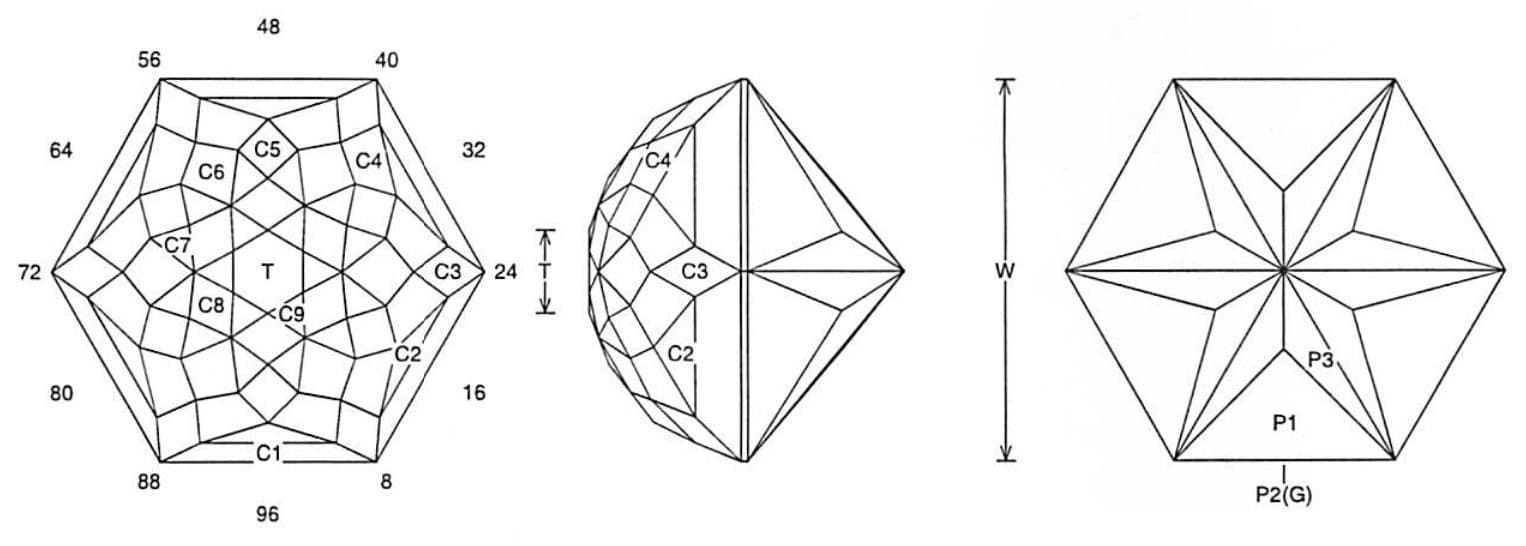

Winter Ice Graham Facet Design 2

Winter Ice (DOME37.JRG)
By Jeff R. Graham
Copyright 2007
84.7% Light Return
Angles for R.I. = 1.62
85 facets + 6 facets on girdle = 91
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.217 T/L = 0.188 P/W = 0.419 C/W = 0.404
H/W = (P+C)/W+0.02 = 0.843 P/H = 0.497 C/H = 0.479
Vol./W^3 = 0.342



Addition # 13 - Cut in refractive indexes 1.62 to 2.14 with no changes. This is ideal for lightly saturated material and works well in about any material. This is not hard to cut and is very pretty.

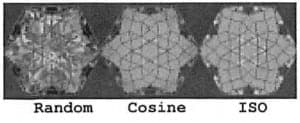

Winter Ice Graham Facet Design 3

Detailed faceting instructions by Jeff Graham available at The Rock Peddler
