Blue Ribbon: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Blue Ribbon"


Beryl (Aquamarine, Emerald, Helidore, Bixbite, Goshenite, Morganite, Golden Beryl)

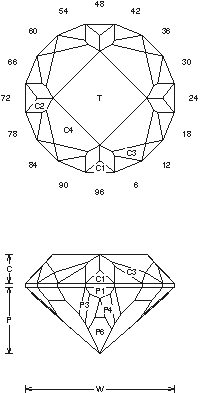

Blue Ribbon (AQUA3.JRG)
By Jeff R. Graham
Copyright 1993
70% Light Return
Angles for R.I. = 1.56
81 facets + 16 facets on girdle = 97
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.635 T/L = 0.635
P/W = 0.449 C/W = 0.194
H/W = (P+C)/W+0.02 = 0.663
P/H = 0.678 C/H = 0.292
Vol./W^3 = 0.245

Gram Book 1 - Here is an unusual design that is a little different to cut. Cut P4 at exactly the right degree (42) and to center point, and you should get the right sizes. P6 is cut to center point, cut evenly, 1-8cts. Cut in refractive index 1.56 to 1.76 (75.6%) with no changes.

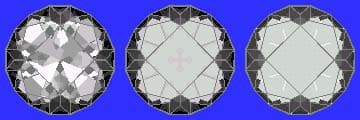

Random - Cosine - ISO
