Boxed: Faceting Design Diagram

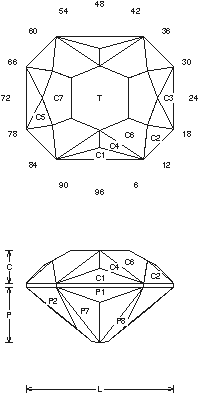

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Boxed".
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)
By Jeff R. Graham

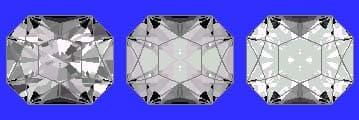

81.5% Light Return
Angles for R.I. = 1.62
43 facets + 8 facets on girdle = 51
2-fold, mirror-image symmetry
L/W = 1.203 T/W = 0.525 T/L = 0.436
P/W = 0.454 C/W = 0.269
H/W = (P+C)/W+0.02 = 0.743
P/H = 0.611 C/H = 0.362
Vol./W^3 = 0.379
Gram Book 1 - It helps if you cut in a temporary girdle P4(G) and P6(G)in a preform L/W=1.20 rectangle. Then cut P1,P2,P3 to center point and adjust the girdle if need be. The P8's cut fast, light to medium material 1-6cts. Cut in refractive index 1.62 to 1.76 (85%) with no changes.
