Boxed Glitter: Faceting Design Diagram
Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Boxed Glitter"
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite
Boxed Glitter (MC93.JRG)
By Jeff R. Graham
Copyright 2006

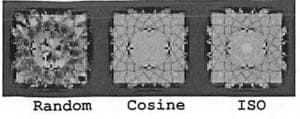

83.4% Light Return
Angles for R.I. = 1.62
153 facets + 20 facets on girdle = 173
4-fold, mirror-image symmetry
96 index

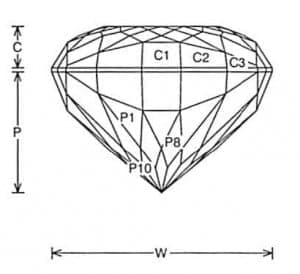

L/W = 1.000 T/W = 0.527 T/L = 0.527 P/W = 0.544
C/W = 0.187 H/W = (P+C)/W+0.02 = 0.751 P/H = 0.724 C/H = 0.249
Vol./W^3 = 0.342

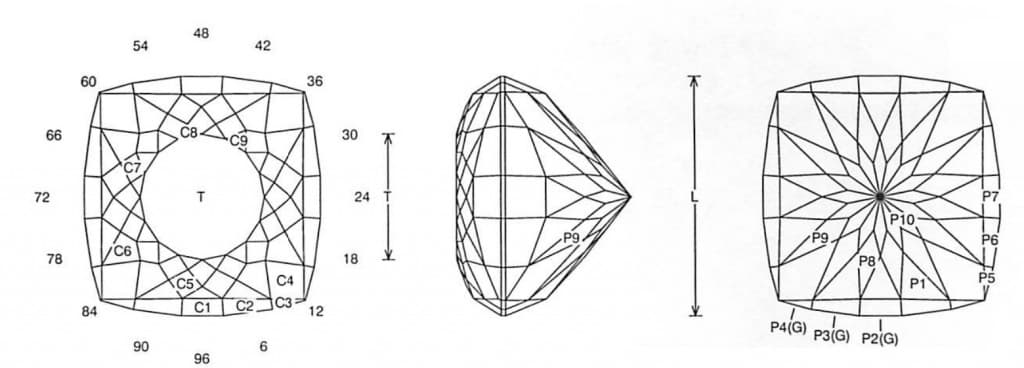

PAVILION
CROWN
Addition # 12 - This is great for lightly saturated materials. Cut in refractive indexes 1.62 to 2.14 (87.9%) with no changes.
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
Jeff R. Graham
The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
