Button Up: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Button Up".


Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

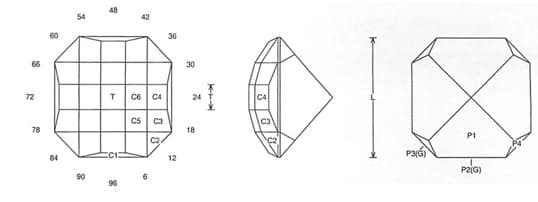

Button Up Jeff Graham Facet Design

Button Up Jeff Graham Facet Design

Button Up (SUN37.JRG)
By Jeff R. Graham
Copyright 2006
88.7% Light Return
Angles for R.I. = 1.54
37 facets + 8 facets on girdle = 45
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.211 T/L = 0.211 P/W = 0.450
C/W = 0.245 H/W = (P+C)/W+0.02 = 0.715 P/H = 0.629 C/H = 0.343 Vol./W^3 = 0.290



Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is fairly easy to cut and designed for light colored rough and watermelons. Be sure and center the color over the point of the pavilion. The color will mix, so check that the colors mix well before cutting.

Button Up Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
