Cherry Blossom: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Cherry Blossom".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

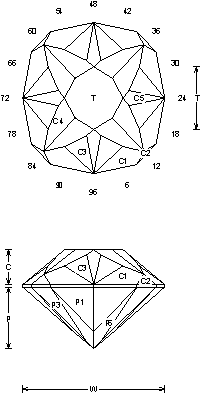

Cherry Blossom (MC75.JRG)
By Jeff R. Graham
Copyright 2002
88.3% Light Return
Angles for R.I. = 1.62
53 facets + 12 facets on girdle = 65
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.414 T/L = 0.414
P/W = 0.408 C/W = 0.229
H/W = (P+C)/W+0.02 = 0.657
P/H = 0.621 C/H = 0.349
Vol./W^3 = 0.227

Addition # 7 - This is straight forward to cut and has a very nice look. I like the petal like crown. This makes very pretty earrings. Cut it in refractive indexes 1.62 to 2.14 with no changes.

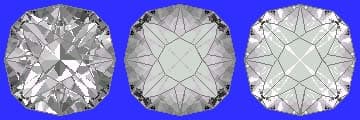

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
