Click Cushion: Faceting Design Diagram

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Click Cushion"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

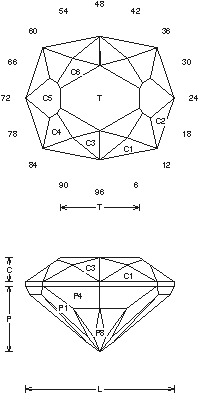

Click Cushion (B27.JRG)
By Jeff R. Graham
Copyright 2001
89.2% Light Return
Angles for R.I. = 1.62
53 facets + 8 facets on girdle = 61
2-fold, mirror-image symmetry
96 index
L/W = 1.200 T/W = 0.639 T/L = 0.533
P/W = 0.532 C/W = 0.197
H/W = (P+C)/W+0.02 = 0.749
P/H = 0.711 C/H = 0.263
Vol./W^3 = 0.354

Addition # 5 - Cut a preform L/W=1.20… The P1 tier will meet the girdle only at 96-24-48-72. This is actually fast and pretty easy to cut. This works with no changes R.I. 1.62 to 1.93 (89.1%). Notice C5 will absorb a bit if your L/W is slightly off.

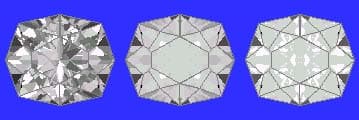

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
