Crystal Lilly: Faceting Design Diagram

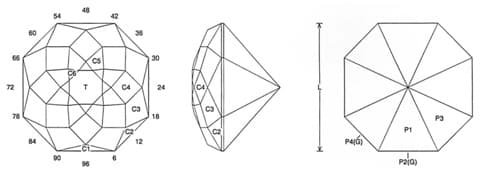

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Crystal Lilly"


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Jeff Graham Facet Design


Crystal Lilly (MIR53.JRG)
By Jeff R. Graham
Copyright 2005

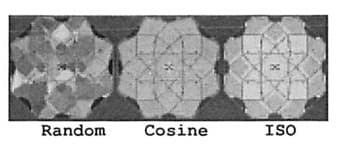

87.9% Light Return
Angles for R.I. = 1.54
49 facets + 8 facets on girdle = 57
8-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.266 T/L = 0.266 P/W = 0.450 C/W = 0.232 H/W = (P+C)/W+0.02 = 0.702 P/H = 0.641 C/H = 0.330 Vol./W^3 = 0.263




Addition # 10 - This design looks quite different than the "Floating Lilly" design. It is surprising what a few changes can do. Cut this in about any material and color, it's easy and pretty fast to do. Cut in refractive indexes 1.54 to 2.14 with no changes.
