Crystal Star: Faceting Design Diagram

Detailed information and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called Crystal Star.


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

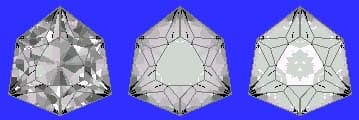

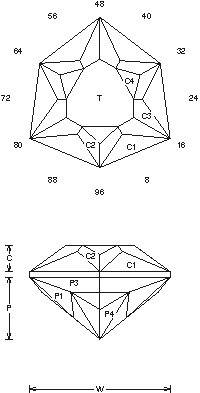

Crystal Star (B1.JRG)
By Jeff R. Graham
Copyright 2001
86% Light Return
Angles for R.I. = 1.62
52 facets + 6 facets on girdle = 58
3-fold, mirror-image symmetry
96 index
L/W = 1.073 T/W = 0.484 T/L = 0.451
P/W = 0.442 C/W = 0.188
H/W = (P+C)/W+0.02 = 0.650
P/H = 0.680 C/H = 0.289
Vol./W^3 = 0.247

Addition # 5 - This will work in R.I. 1.62 to 1.76 with no changes. I prefer it in a medium to light colored Tourmaline, which is what the shape is designed for… It is fast and easy to cut, it is really a "Money Cut".

Random - Cosine - ISO
