Crystal Tourmaline: Faceting Design Diagram


Tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Crystal Tourmaline".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

crystal tourmaline design

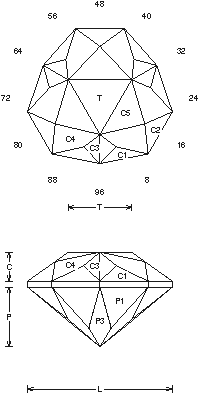

Crystal Tourmaline (TLINE8.JRG)
By Jeff R. Graham
Copyright 1994
81.0% Light Return
Angles for R.I. = 1.62
43 facets + 9 facets on girdle = 52
3-fold, mirror-image symmetry
96 index
L/W = 1.073 T/W = 0.467 T/L = 0.435
P/W = 0.441 C/W = 0.177
H/W = (P+C)/W+0.02 = 0.638
P/H = 0.692 C/H = 0.277
Vol./W^3 = 0.241

Gram Book 1 - This design is a nice one. It works great for material that has this shape on the "C" axis. It should be cut in a little larger size, and any color that has good light through the "C", 1-6cts. This works very well cut in the Nigerian pink Tourmaline. Cut in refractive index 1.62 to 1.93 (83.6%) with no changes.

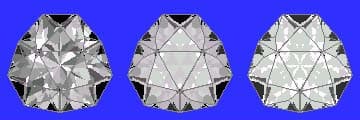

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
