Cut Corner Pent: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Cut Corner Pent".


Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

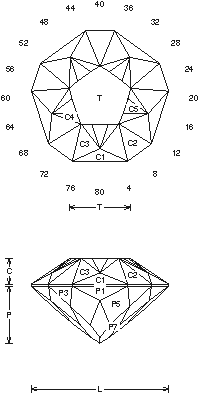

Cut Corner Pent (GNETP32.JRG)
By Jeff R. Graham
Copyright 1996
87.1% Light Return
Angles for R.I. = 1.73
66 facets + 10 facets on girdle = 76
5-fold, mirror-image symmetry
80 index
L/W = 1.051 T/W = 0.468 T/L = 0.445
P/W = 0.436 C/W = 0.197
H/W = (P+C)/W+0.02 = 0.653
P/H = 0.668 C/H = 0.301
Vol./W^3 = 0.235

Gram Book 1 - Note 80 index. This cuts easy in about any material, 1-6cts. This works well in man-made Sapphire and Spinel. I especially like it in Rhodolite Garnet 2-3cts. Cut in refractive indexes 1.73 to 2.14 with no changes.

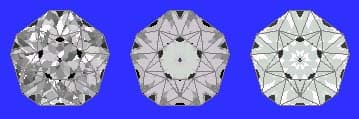

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
