Dome Brilliant: Faceting Design Diagram

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called Dome Brilliant.


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

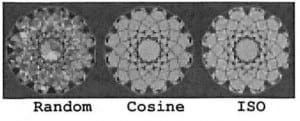

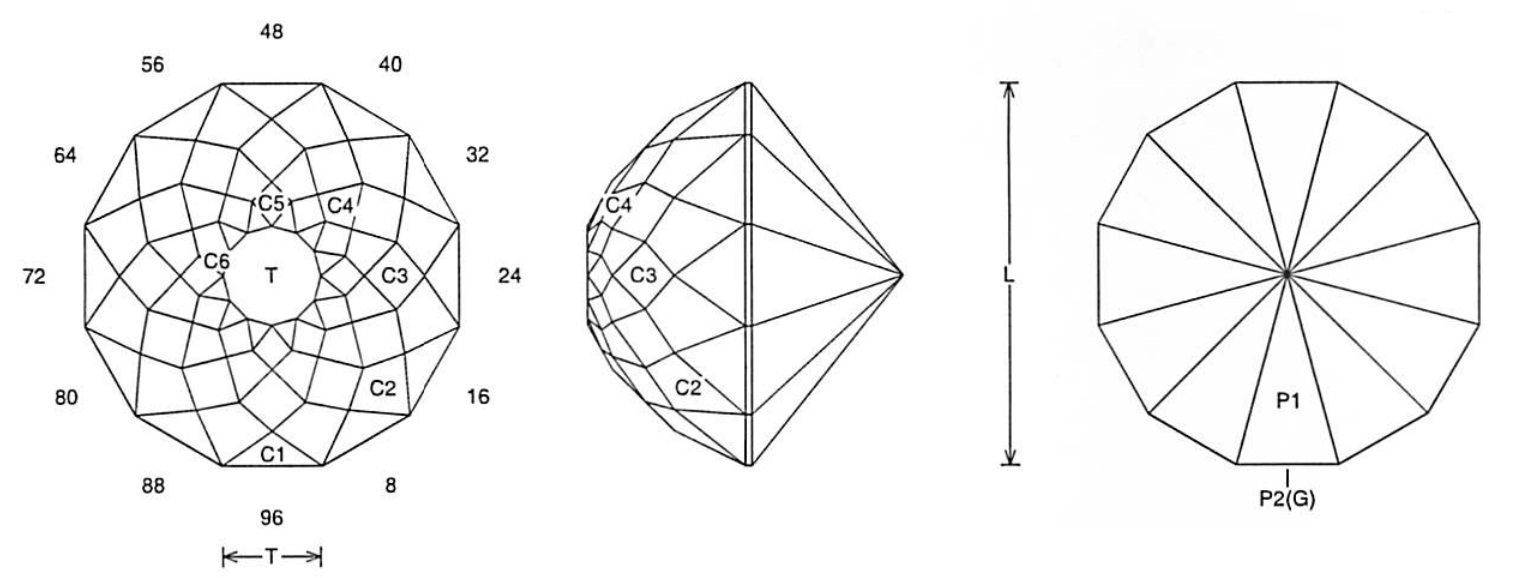

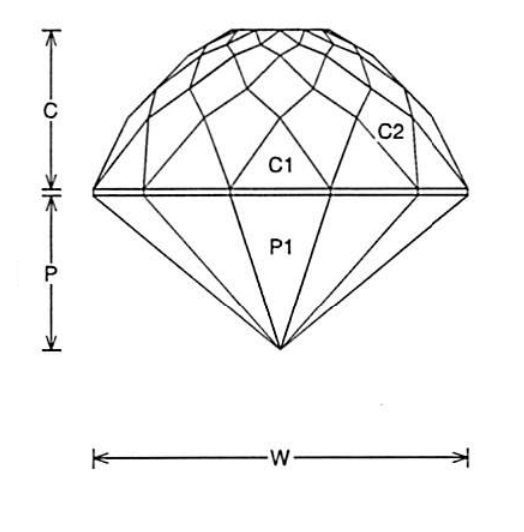

Dome Brilliant Jeff Graham Facet Design 1Dome Brilliant Jeff Graham Facet Design 2

Dome Brilliant (DOME41.JRG)
By Jeff R. Graham
Copyright 2007
81.6% Light Return
Angles for R.I. = 1.62
85 facets + 12 facets on girdle = 97
12-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.262 T/L = 0.262 P/W = 0.405 C/W = 0.419
H/W = (P+C)/W+0.02 = 0.843 P/H = 0.480 C/H = 0.496
Vol./W^3 = 0.310



Addition # 13 - Cut in refractive indexes 1.62 to 2.14 with no changes. This is designed for pale to lightly saturated material and is ideal for nodules. It is not hard to cut, but there are quite a few facets and it will take some time.

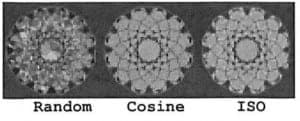

Dome Brilliant Jeff Graham Facet Design 3
