Dragon’s Breath: Faceting Design Diagram

Successful Tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Dragon's Breath".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

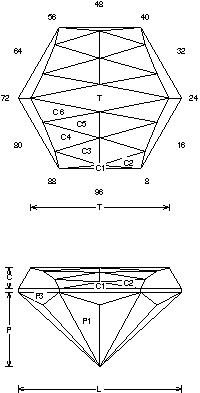

Dragon's Breath (CHECK81.JRG)
By Jeff R. Graham
Copyright 2003
82.5% Light Return
Angles for R.I. = 1.62
45 facets + 6 facets on girdle = 51
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.980 T/L = 0.849
P/W = 0.528 C/W = 0.148
H/W = (P+C)/W+0.02 = 0.696
P/H = 0.759 C/H = 0.212
Vol./W^3 = 0.278

Addition # 8 - Cut in refractive indexes 1.62 to 2.14 with no changes. This one is a little tough to cut and will take some adjusting on the crown depending on the machine and, of course, the cutter. This is nice in about material, but I like it in light to medium saturated material.

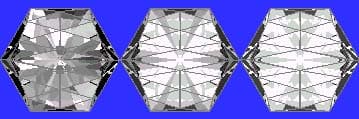

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
