Fancy: Faceting Design Diagram


Successful tips and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Fancy-Tourmailne".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Fancy Jeff Graham Facet DesignFancy Jeff Graham Facet Design

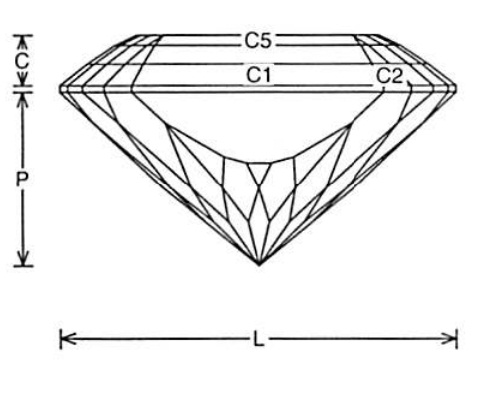

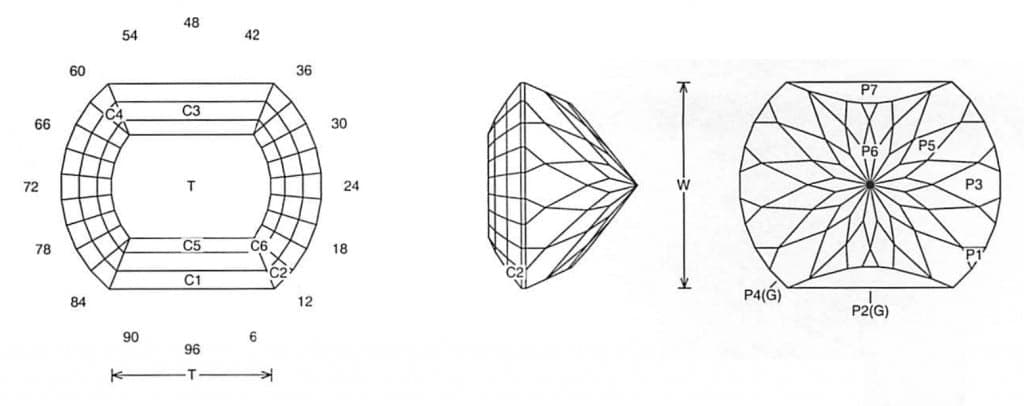

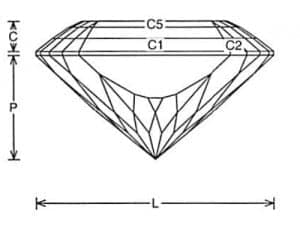

Fancy (MC101.JRG)
By Jeff R. Graham
Copyright 2006
86.2% Light Return
Angles for R.I. = 1.62
119 facets + 20 facets on girdle = 139
2-fold, mirror-image symmetry
96 index
L/W = 1.287 T/W = 0.791 T/L = 0.614 P/W = 0.562
C/W = 0.162 H/W = (P+C)/W+0.02 = 0.744 P/H = 0.755 C/H = 0.218 Vol./W^3 = 0.393

PAVILION

CROWN

Addition # 12 - Cut to meet C6. Cut in refractive indexes 1.62 to 2.14 with no changes. Note: This is a little different to cut, the P2 over cuts the P1 leaving the breaks out at the girdle. Cut all the girdle facets as evenly as you can. P3 splits P1 at the girdle. Cut the P3 to center point and cut evenly from both sides a little at a time. You can leave the L/W a little long on the curved ends and them cut to match the P3.

Think out side the box... Cutting "Fancy"

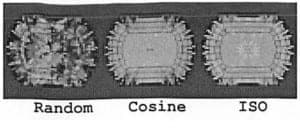

Fancy Jeff Graham Facet Design
