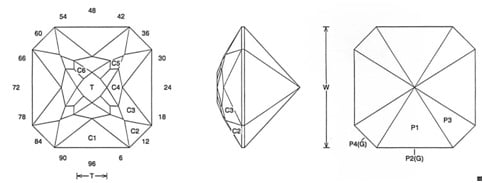

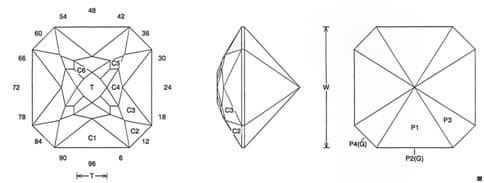

Jerico: Faceting Design Diagram

Successful tips, details, and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Jerico".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)


Jeff Graham Facet Design

Jerico (MIR57.JRG)
By Jeff R. Graham
Copyright 2005
89.3% Light Return
Angles for R.I. = 1.62
41 facets + 8 facets on girdle = 49
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.250 T/L = 0.250 P/W = 0.466
C/W = 0.205 H/W = (P+C)/W+0.02 = 0.692 P/H = 0.674 C/H = 0.297 Vol./W^3 = 0.259



Addition # 10 - Cut in refractive indexes 1.62 to 1.93 with no changes. This has a lot of reflections in it and works best in a large stone with light saturation. This is quick and easy to cut. It is great for large earrings.
