Kalli: Faceting Design Diagram

Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Kalli".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

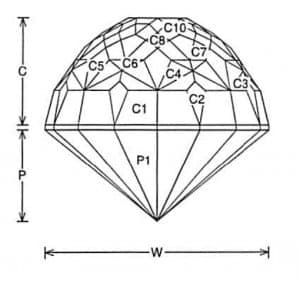

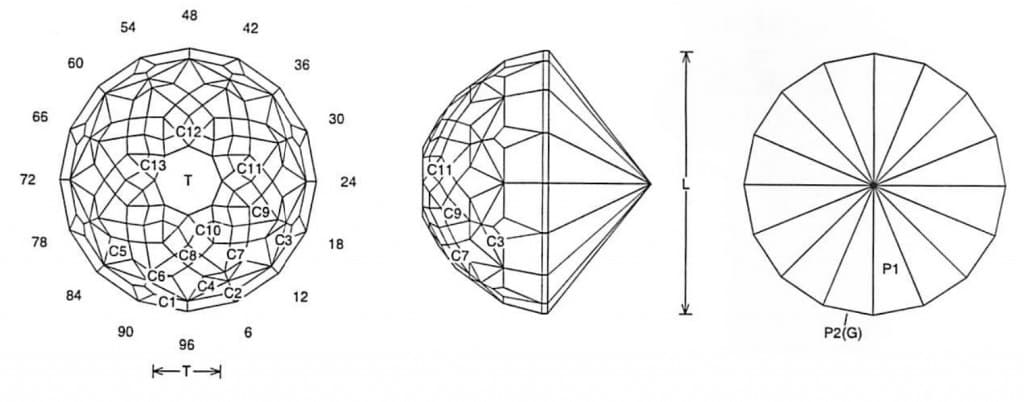

Kalli Jeff Graham Facet Design 1Kalli Jeff Graham Facet Design 2


Kalli Gemstone Design

Kalli (DOME2.JRG)
By Jeff R. Graham
Copyright 2007
80.6% Light Return
Angles for R.I. = 1.62
169 facets + 16 facets on girdle = 185
8-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.263 T/L = 0.263 P/W = 0.397
C/W = 0.466 H/W = (P+C)/W+0.02 = 0.883 P/H = 0.450 C/H = 0.528 Vol./W^3 = 0.342



Addition # 13 - Cut in refractive indexes 1.62 to 2.14 with no changes. This is not hard to cut, but it is time consuming and needs to be cut in a large stone. Light color and saturation is best. This is made to be bezel set which is why the C1 is a large as it is.

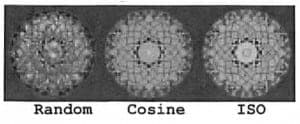

Kalli Jeff Graham Facet Design 3


Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
