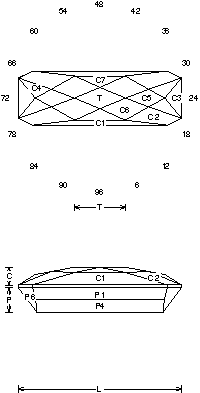

Kiss'n Fish: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Kiss'n Fish".

0

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Kiss'n Fish (CHECK65.JRG)
By Jeff R. Graham
Copyright 2003
76% Light Return
Angles for R.I. = 1.62
31 facets + 8 facets on girdle = 39
2-fold, mirror-image symmetry
96 index
L/W = 3.010 T/W = 0.945 T/L = 0.314
P/W = 0.450 C/W = 0.327
H/W = (P+C)/W+0.02 = 0.797
P/H = 0.564 C/H = 0.411
Vol./W^3 = 1.341

Addition # 8 - This is designed for long narrow Tourmaline crystals, and makes a nice stone in about any material. I use it for the occasional multi-colored long crystals I come across. This is fairly simple but the keel can be tough to polish because of it's length. Cut this in refractive indexes 1.62 to 2.14 with no changes.

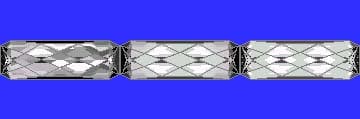

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
