Lilac Lace: Faceting Design Diagram

Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

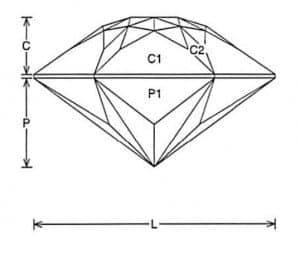

Lilac Lace (DOME14.JRG)

By Jeff R. Graham
Copyright 2007

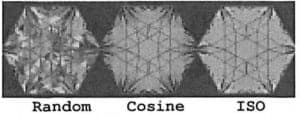

86.7% Light Return
Angles for R.I. = 1.62
61 facets + 6 facets on girdle = 67
6-fold, mirror-image symmetry
96 index
L/W = 1.155 T/W = 0.265 T/L = 0.230 P/W = 0.419
C/W = 0.266 H/W = (P+C)/W+0.02 = 0.705 P/H = 0.595 C/H = 0.377 Vol./W^3 = 0.256

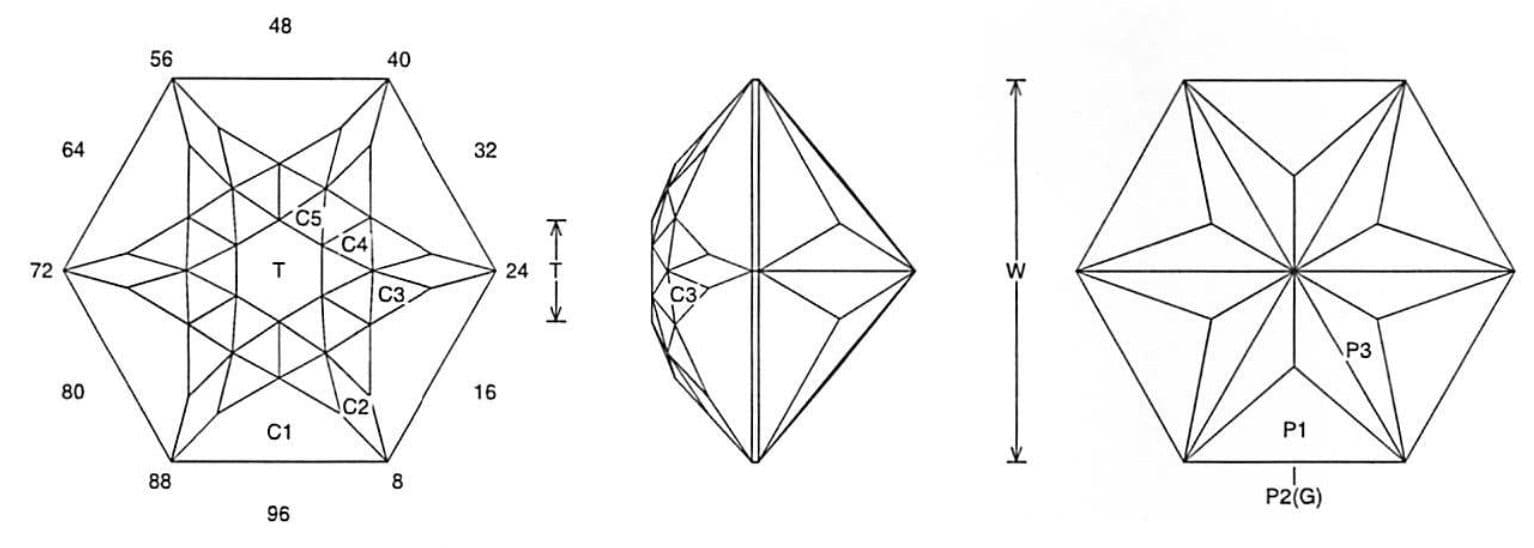

PAVILION

CROWN

Addition # 13 - Cut this in refractive indexes 1.62 to 2.14 with no changes. This works well in light to medium saturated stones. I like it in Rubellite and hot pink Tourmaline. The crown can take a bit of tweaking. NOTE: The C3 tier is just cut to eye and it can be varied slightly.

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
