Little Mo: Faceting Design Diagram

Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Little Mo".


Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

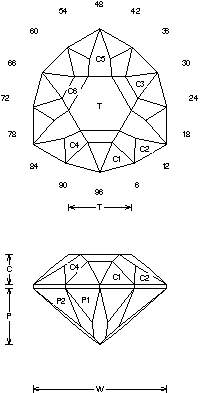

Little Mo (MC62.JRG) Mali Garnet
By Jeff R. Graham
Copyright 2001
83.1% Light Return
Angles for R.I. = 1.73
52 facets + 12 facets on girdle = 64
3-fold, mirror-image symmetry
96 index
L/W = 1.075 T/W = 0.470 T/L = 0.437
P/W = 0.419 C/W = 0.223
H/W = (P+C)/W+0.02 = 0.663
P/H = 0.633 C/H = 0.337
Vol./W^3 = 0.241

Addition # 7 - I designed this for a nice size yellow/green Mali Garnet. This is very deep to help color and dispersion. Notice the facets are smaller and they cross each other to help increase sparkle. This works well in man-made Sapphire, Zircon, and CZ with no changes.

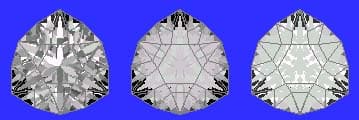

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
