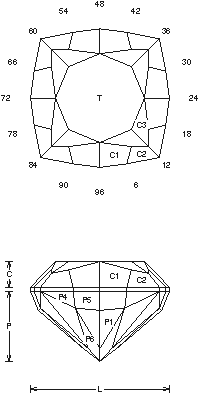

Miner: Faceting Design Diagram

Successful tips, details, and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Miner".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Miner (B9.JRG)
By Jeff R. Graham
Copyright 1999
90.3% Light Return
Angles for R.I. = 1.62
65 facets + 16 facets on girdle = 81
4-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.641 T/L = 0.641
P/W = 0.502 C/W = 0.184
H/W = (P+C)/W+0.02 = 0.706
P/H = 0.711 C/H = 0.261
Vol./W^3 = 0.314

Addition # 5 - This is a "Money Cut"… I have designed this to be simple and adapt- able. The crown can be floated in, notice the lack of meet points. This will help recover weight because of the Barion shape and still be easy and fast. Cut this in light materials because it darkens a bit. Cut P1 to center point, then cut the girdle to meet, then the breaks. This can be cut in R.I. 1.62 to 1.76 (90.2%) with no changes.

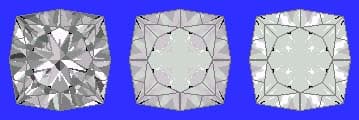

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
