Not: Faceting Design Diagram

Successful tips, details, and a guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Not".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

Jeff Graham Faceting DesignJeff Graham Faceting Design

Not (MIR70.JRG)
By Jeff R. Graham
Copyright 2005

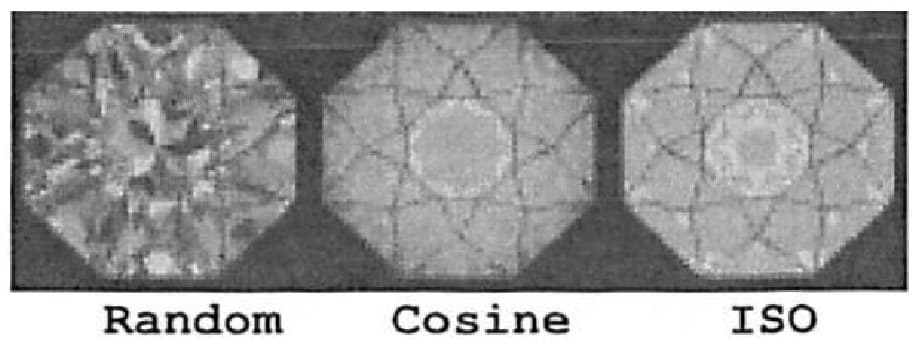

92.2% Light Return
Angles for R.I. = 1.62

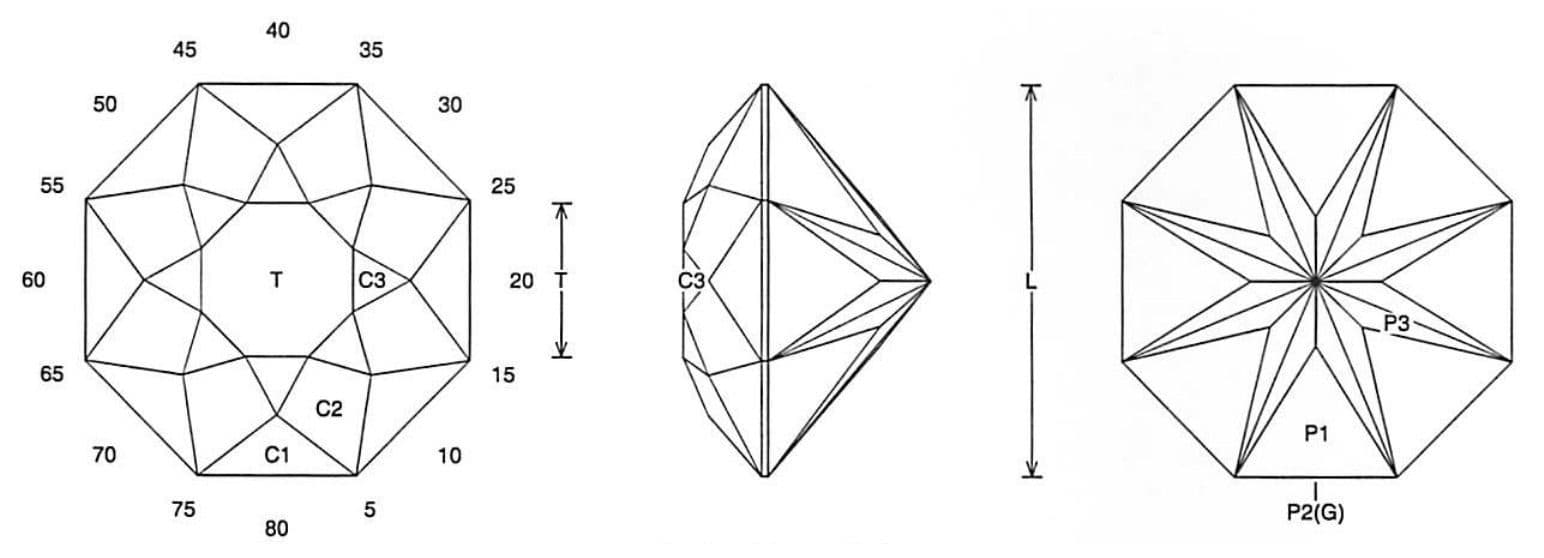

49 facets + 8 facets on girdle = 57
8-fold, mirror-image symmetry
80 index

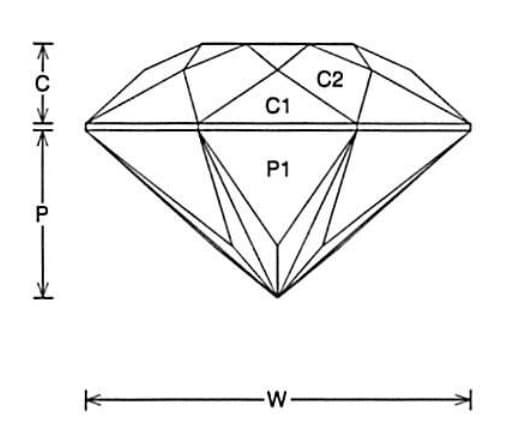

L/W = 1.000 T/W = 0.396 T/L = 0.396 P/W = 0.426
C/W = 0.204 H/W = (P+C)/W+0.02 = 0.650 P/H = 0.655 C/H = 0.314 Vol./W^3 = 0.230



Addition # 10 - This is easy to cut, but needs to be in a large size,10mm and up. The amount of Mirage reflections in this design are amazing. I designed this to be a fast way to cut large stone. This is "Not" what you think, and it can be a little harder to cut than may think. The P3 tier is a bit difficult depending on the stone size.

Jeff Graham Faceting Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler

Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
