Diamond Oval: Faceting Design Diagram

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Diamond Oval".


Garnet (Pyrope, Rhodolite, Almandine, Spessartite, Grossular, Demantoid, Tsavorite)

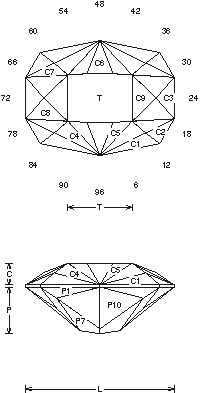

Diamond Oval (GNETP40.JRG)
By Jeff R. Graham
Copyright 1997
90.3% Light Return
Angles for R.I. = 1.73
57 facets + 10 facets on girdle = 67
2-fold, mirror-image symmetry
96 index
L/W = 1.290 T/W = 0.557 T/L = 0.432
P/W = 0.406 C/W = 0.189
H/W = (P+C)/W+0.02 = 0.614
P/H = 0.660 C/H = 0.307
Vol./W^3 = 0.306

Addition # 2 - This cuts a little different. The P7 is a step that is cut into the finished shape. It can be cut in a different order, and is harder to cut than it might look. It works well in man-made Sapphire, Spinel, and YAG, 2-12cts.
