Pat's Points: Faceting Design Diagram
Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Pat's Points".0
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

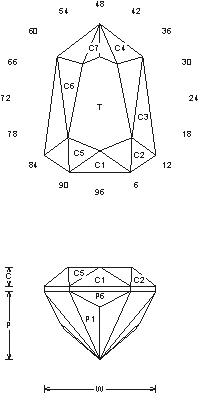

Pat's Points (MC16.JRG)
By Jeff R. Graham
75.9% Light Return
Angles for R.I. = 1.62
35 facets + 7 facets on girdle = 42
1-fold, mirror-image symmetry
L/W = 1.330 T/W = 0.844 T/L = 0.635
P/W = 0.614 C/W = 0.172
H/W = (P+C)/W+0.02 = 0.805
P/H = 0.762 C/H = 0.213
Vol./W^3 = 0.416
Addition # 4 - This is designed to be used in sets, it cuts pretty easy and has a nice flash. It works well around a square or trillion. Cut in about any material, I prefer medium color, 1/2ct and up. This works in Topaz... Cut this in R.I. 1.62 to 2.14 without changes.
Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
