Feldspar (Sunstone, Orthoclase, Bytownite, Labardorite, Aventurine)

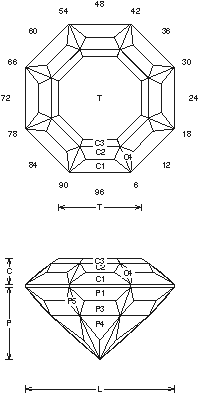

Ralph's Byte (BYTE1.JRG)
by Jeff R. Graham
Copyright 1994
75% Light Return
Angles for R.I. = 1.54
97 facets + 8 facets on girdle = 105
8-fold, mirror-image symmetry
96 index
L/W = 1.000 T/W = 0.555 T/L = 0.555
P/W = 0.489 C/W = 0.173
H/W = (P+C)/W+0.02 = 0.682
P/H = 0.717 C/H = 0.254
Vol./W^3 = 0.260

Addition # 1 - This design is a little hard to cut. The steps on the bottom are about even, the top steps get smaller as they go to the table. The steps can be cut to your own taste, 1-16cts. Cut in refractive indexes 1.54 to 1.93 (83.9%) with no changes. This cuts well in Beryl, Feldspar (Sunstone),and Topaz.

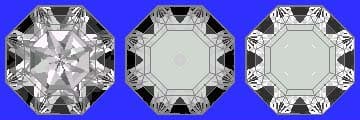

Random - Cosine - ISO

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
