Scribe Triangle: Faceting Design Diagram
Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Scribe Triangle".
Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

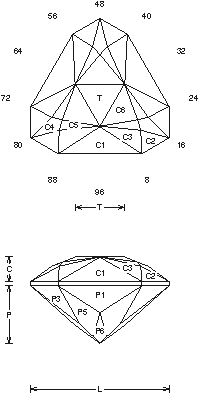

Scribe Triangle (TLINE4.JRG)
By Jeff R. Graham Copyright 1993

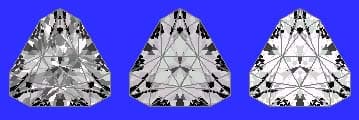

79.1% Light Return
Angles for R.I. = 1.62
49 facets + 9 facets on girdle = 58
3-fold, mirror-image symmetry
L/W = 1.020 T/W = 0.360 T/L = 0.353
P/W = 0.424 C/W = 0.182
H/W = (P+C)/W+0.02 = 0.625
P/H = 0.677 C/H = 0.291
Vol./W^3 = 0.207
Gram Book 1 - Cut this design in medium to light material. A larger size stone works best because of the narrow crown facets. It cuts easy and fast for a triangle, and has nice sparkle, 1-12cts. Cut in refractive index 1.62 to 1.76 (79.4%) with no changes.
Random - Cosine - ISO
Detailed faceting instructions by Jeff Graham available at The Rock Peddler
