Sliver: Faceting Design Diagram


Successful tips, details and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Sliver".

0

Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

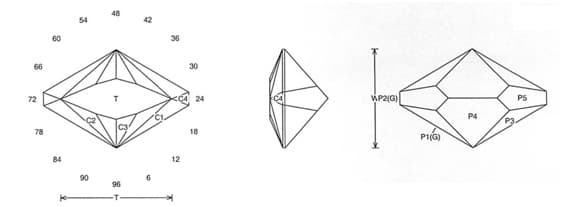

Sliver Jeff Graham Facet Design

Sliver Jeff Graham Facet Design

Sliver (SUN9.JRG)
By Jeff R. Graham
Copyright 2006
84.6% Light Return
Angles for R.I. = 1.54
23 facets + 6 facets on girdle = 29
2-fold, mirror-image symmetry
96 index
L/W = 1.500 T/W = 1.148 T/L = 0.765 P/W = 0.450
C/W = 0.132 H/W = (P+C)/W+0.02 = 0.602 P/H = 0.748 C/H = 0.219 Vol./W^3 = 0.284

PAVILION

CROWN

Addition # 11 - Cut in refractive indexes 1.54 to 2.14 with no changes. This is designed for those pieces of rough that have color on the thin edge. This works well in about any color and because of the keel it's good for dichroiac material.

Sliver Jeff Graham Facet Design

Detailed faceting instructions by Jeff Graham available at The Rock Peddler


Jeff R. Graham

The late Jeff Graham was a prolific faceter, creator of many original faceting designs, and the author of several highly-regarded instructional faceting books such as Gram Faceting Designs.
