Split Flash: Faceting Design Diagram


Successful tips and guide on Faceting Designs. A Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Split Flash".

0

Sunstone (Feldspar, Bytonite, Labradorite, Spectrolite, Orthoclase)

Split Flash Jeff Graham Facet Design

Split Flash Jeff Graham Facet Design

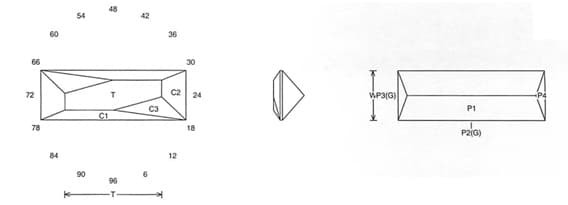

Split Flash (SUN27.JRG)
By Jeff R. Graham
Copyright 2006
90.6% Light Return
Angles for R.I. = 1.54
11 facets + 4 facets on girdle = 15
2-fold symmetry
96 index
L/W = 3.000 T/W = 2.009 T/L = 0.670 P/W = 0.450
C/W = 0.133 H/W = (P+C)/W+0.02 = 0.604 P/H = 0.746 C/H = 0.221 Vol./W^3 = 1.051

PAVILION

CROWN

Addition # 11 - Cut this in refractive indexes 1.54 to 2.14 with no changes. This is designed for color and light shiller. The pavilion will reflect any color and shiller well. Sunstone seems to occur in long shallow layers and this is for that type of rough. The L/W is not critical.
