Diamond Star : Faceting Design Diagram

Detailed information and guide on Faceting Designs. Faceting Design Diagram by Jeff R. Graham that presents various cuts, this one is called "Diamond Star".


Tourmaline (Achroite, Dravite, Rubellite, Indicolite, Verdelite, Siberite)

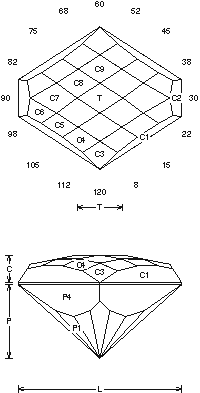

Diamond Star (CHECK31.JRG)
By Jeff R. Graham
Copyright 2001

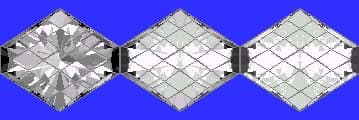

87% Light Return
Angles for R.I. = 1.62
49 facets + 6 facets on girdle = 55
16-fold, mirror-image symmetry
120 index
L/W = 1.143 T/W = 0.321 T/L = 0.281
P/W = 0.517 C/W = 0.193
H/W = (P+C)/W+0.02 = 0.730
P/H = 0.709 C/H = 0.264
Vol./W^3 = 0.257

Addition # 6 - L/W is critical on this one, otherwise the diamonds on the top can be a pain to line up. Other than that it cuts easily and is a very unusual design.
